Drain-Waste-Vent

ABS DWV Foam Core Pipe

Wavin offers a complete solution combination with plumbing drain, waste and vent applications of Bow's ABS DWV Foam Core (Coextruded ABS Cellular Core).

french-wastesolutions-hero

Bow ABS

Bow’s foam-core (Coextruded ABS Cellular Core) and Solid Wall pipe is used for plumbing drain, waste and vent (DWV) applications. Pipe and fittings are available in nominal diameter sizes from 1-1/4” to 6”.

  • The product is used in single family homes and general wood frame construction.



french-wastesolutions-abs
ABS Fittings Data Sheet ABS Cellcore Data Sheet ABS Solid Wall Data Sheet ABS DWV Price List ABS DWV Price List - Excel ABS DWV Fittings - Lay Length Backwater Valve

PVC Sewer Pipe

Bow’s sewer pipe is used for building drainage and sewer applications. The pipe is available in 3” (75mm) and 4” (100mm) nominal diameter solvent weld joint with either non-perforated or perforated single-wall. Non-perforated pipe is used to collect wastewater or storm water from the building drains to convey it to the municipal sewer lateral at the property line, while perforated pipe is used in septic fields and for foundation drainage.

PVC-Tuyaux-bg

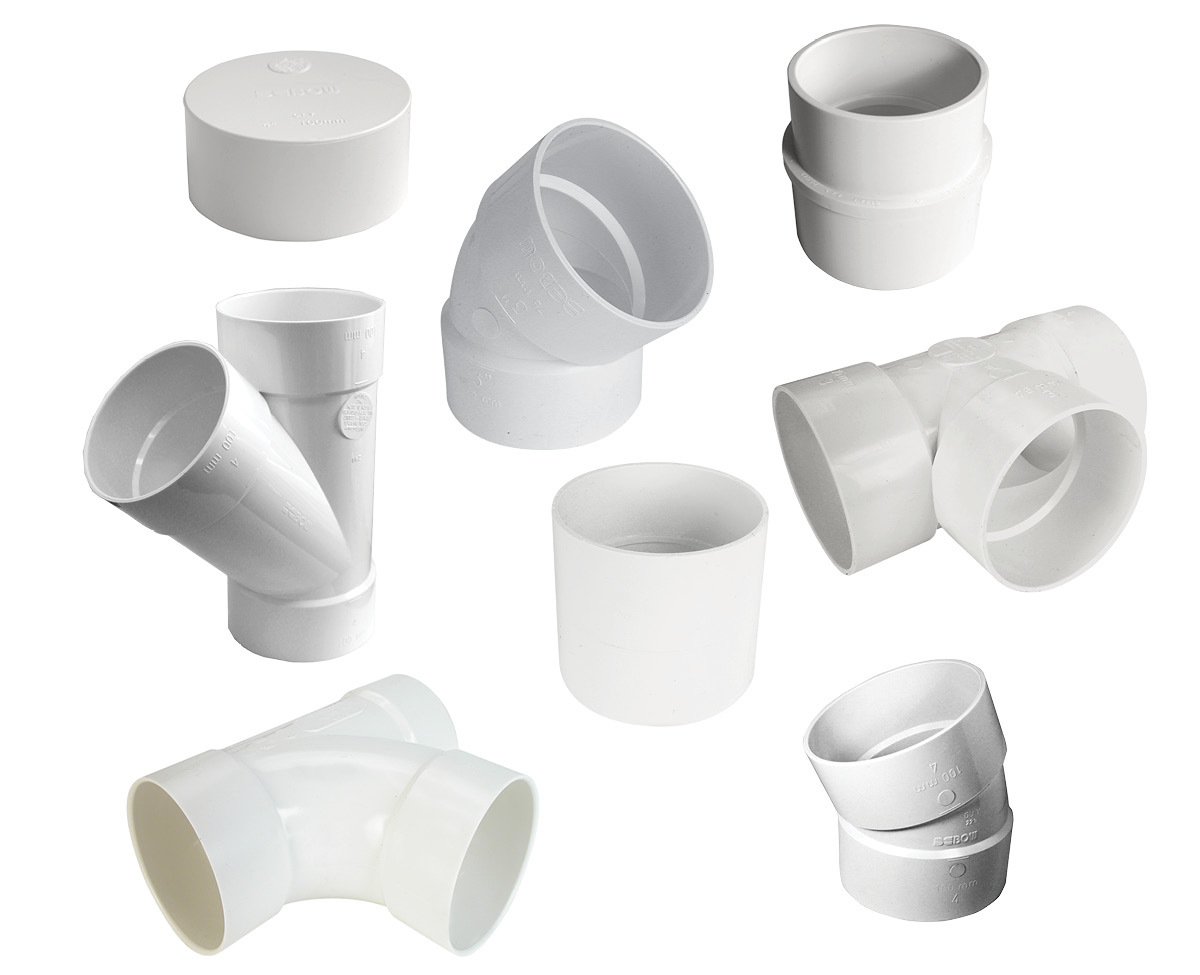

PVC Fittings Data Sheet PVC Pipe Data Sheet PVC Fittings Price List PVC Fittings Price List - Excel

Bath and Waste Overflow

Keep your bathroom in good condition with Bow's Bath and Waste Overflow kits. Available in a chrome-plated finish, our kits are functional and easy to install, and are here to ensure that water drains away when needed. A Bath and Waste Overflow kit that works well means a worry-free mind!

Renvoie-1
Bath & Waste Overflow - Tubular Black Specialty Products & Tools Price List Specialty Products & Tools Price List - Excel
french-wastesolutions-hepvo

HepVO Sanitary Waste Valve

The P-Trap Alternative!

Wavin offers a complete solution in combination with Bow’s ABS pipe and fittings.

Wavin’s HepvO is available in 3.18cm (1-1/4”) and 3.81cm (1-1/2”) dimensions, and can be installed vertically or horizontally, thanks to an angled adapter. For sewer pipes with low, intermittent or seasonal use, Wavin’s HepvO is an effective alternative to conventional p-traps. Already used in North America in recreational vehicles and boats, Wavin’s HepvO technology is approved for use in residential and commercial units by the 2024 Uniform Plumbing and Mechanical Codes for HVAC applications.

Frequently Asked Questions

is Wavin HepVO used in addition to a conventional trap?

NO, unlike other products which prevent foul odors entering the living space, HepvO is used instead of a conventional water-seal trap.

When using a Wavin HepVO in place of a P-trap in a residential or commercial building what should I do about venting?

The full venting requirements of the applicable Plumbing Code shall still be followed, irrespective of whether a P-trap or a Wavin HepvO is installed.

Can I use drain cleaning chemicals?

Wavin HepvO is resistant to standard caustic-based drain cleaners. It is also resistant to acid-based cleaners with concentrations up to 10%. When flushing with higher concentrations of acid based cleaner, the valve must be removed before the operation. After any maintenance, it is recommended that the valve is flushed through with clean water.

Wavin HepVO is a new product to me - how can I be confident that it will provide good performance once installed?

Wavin HepvO is new to the North American market, but it is not a new product. It has been in volume production in the UK since 1997 and it is widely used in Europe, Australia and the Far East. It has attained numerous international approvals against very demanding standards and has achieved an enviable track record of trouble-free performance.

Will Wavin HepVO promote better hygiene by stopping the escape of foul sewer air into habitable spaces?

YES - The valve has been proven to perform under conditions in which traditional water seal traps are vulnerable to failure. It will continue to perform under back pressures 10 times greater than those experienced in correctly designed soil and waste systems.

Does the airtight seal break down if a strand of cloth or hair collects in the strainer and falls down between the faces of the valve?

NO – Wavin HepvO has undergone extensive foreign body testing (ASME A112.18.8). Tests show that the valve will maintain an airtight seal around an obstruction such as hair, fabric strands or spaghetti.

What is the life expectancy of Wavin HepVO?

Installed correctly can be expected to have a life expectancy at least equivalent to current water sealed traps. In addition, Wavin HepvO is guaranteed against defects in materials or manufacturing for a period of 3 years.

Will Wavin HepVO block easily for example if fat is discharged through it?

NO - Extensive testing has shown that Wavin HepvO is less prone to blockage than traditional water seal traps. Note: because the ‘straight through’ design of Wavin HepvO does not trap debris discharged through the waste fixture care should be taken with jewelry and other valuables.

Will the seal be maintained even when the fixture hasn’t been used for some time?

YES - Wavin HepvO does not depend on a water seal and so it will continue to maintain a seal whether a fixture never gets used or is used very infrequently.

Does the valve make a noise?

Under normal conditions Wavin HepvO operates silently, unlike normal traps that are prone to ‘gurgle’.

Will Wavin HepVO support microbiological growth?

NO - The materials used to manufacture Wavin HepvO will not support microbiological growth, for example mold and mildew.
